Laboratory Hot Plate

Available model

  • HP-1816
  • HP-2218
  • HP-1816-1L (Stirrer)
  • HP-2218-5L (Stirrer)

    • PRODUCT INFO

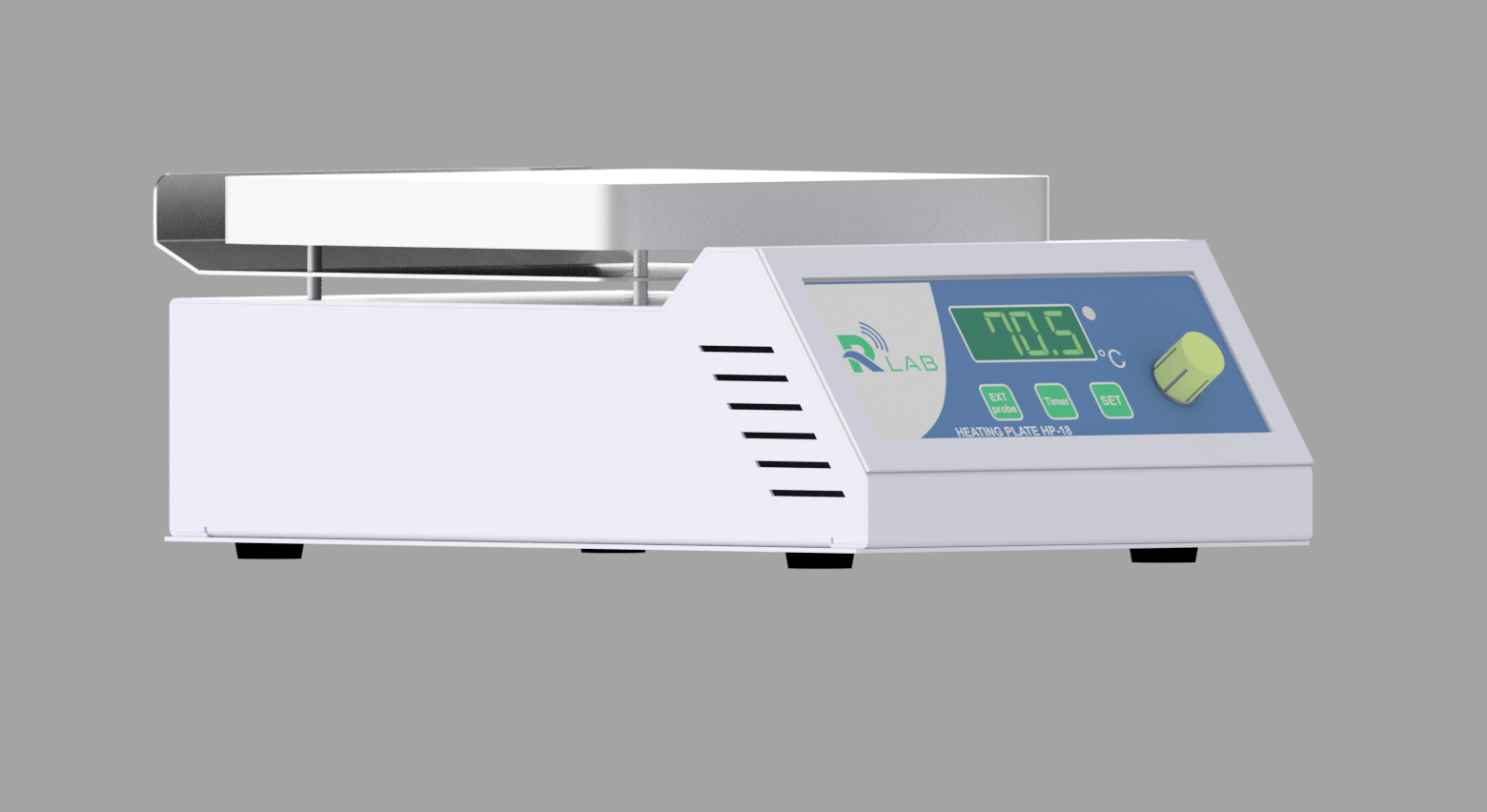

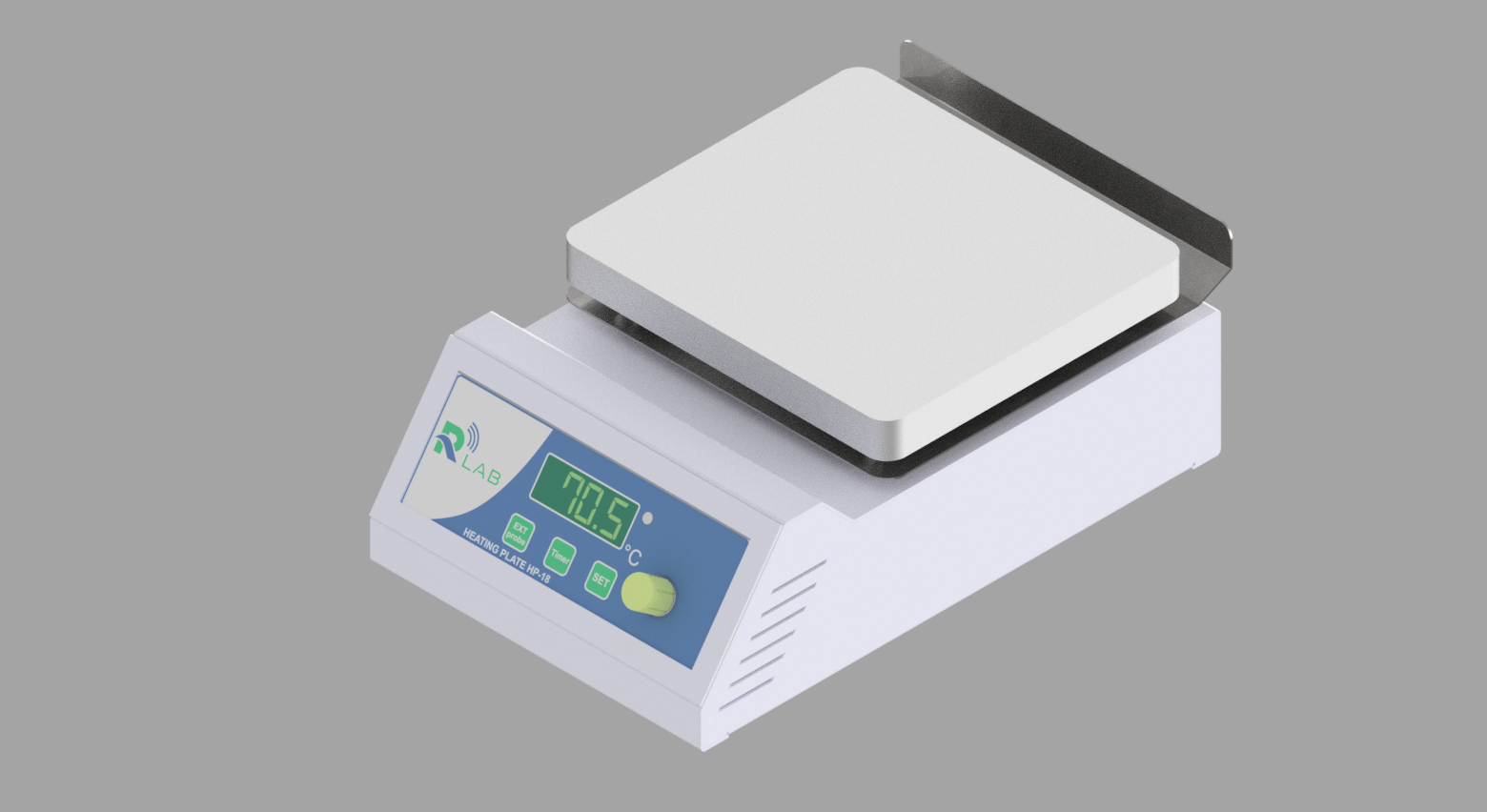

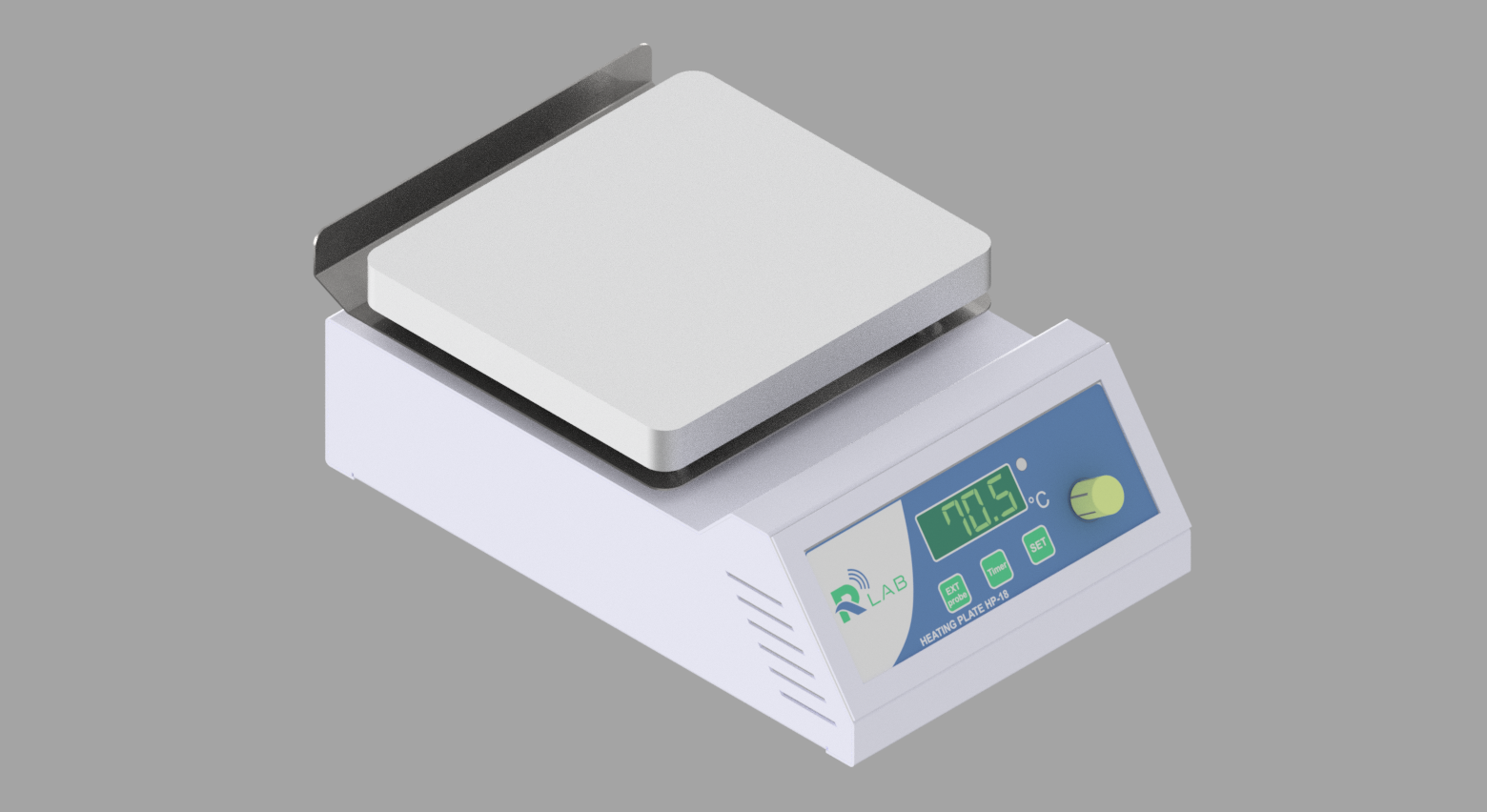

    Laboratory Hot Plate

  • PID controller with Auto-tuning provides accurate temperature regulation.
  • Large and clear display.
  • Temperature sensor thermocouple K.
  • Aluminum plate for uniform temperature distribution.
  • With strong magnetic to prevent the magnetic stir bar from jumping out.
  • Over range protection.
  • External temperature probe.
  • Knob design for easy to control temperature and speed.
  • Stainless Steel secondary heat insulation plate prevents heat loss.
  • Cooling fan eliminates heat damage to electronic components.
  • Design with liquid overflow protection.
    • Plate dimension (mm) 180 x 160
    Heating Feature
    Material (plate): Aluminum
    Temperature Range (℃) 50℃～380℃
    Temperature accuracy internal sensor ±4°C
    Temperature accuracy external probe ±2°C
    Application Feature
    Power（W） 700
    Power Requirement AC 220V/50Hz/60Hz

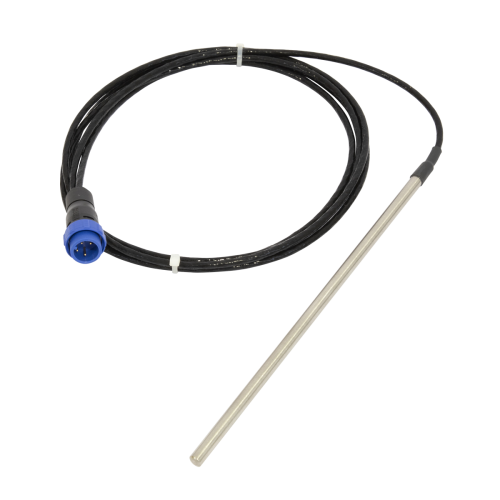

    External temperature probe PT100 class A with 4 pin M12 male connector order REF: HP-#4021

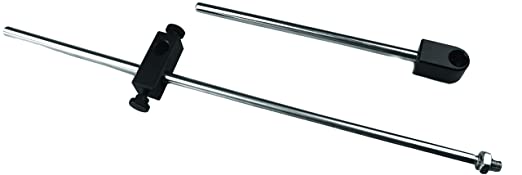

    External probe stand order REF: HP-#4022

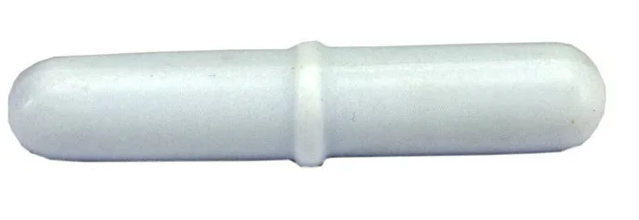

    Magnetic-stirrer 9x28mm REF: HP-#4023
