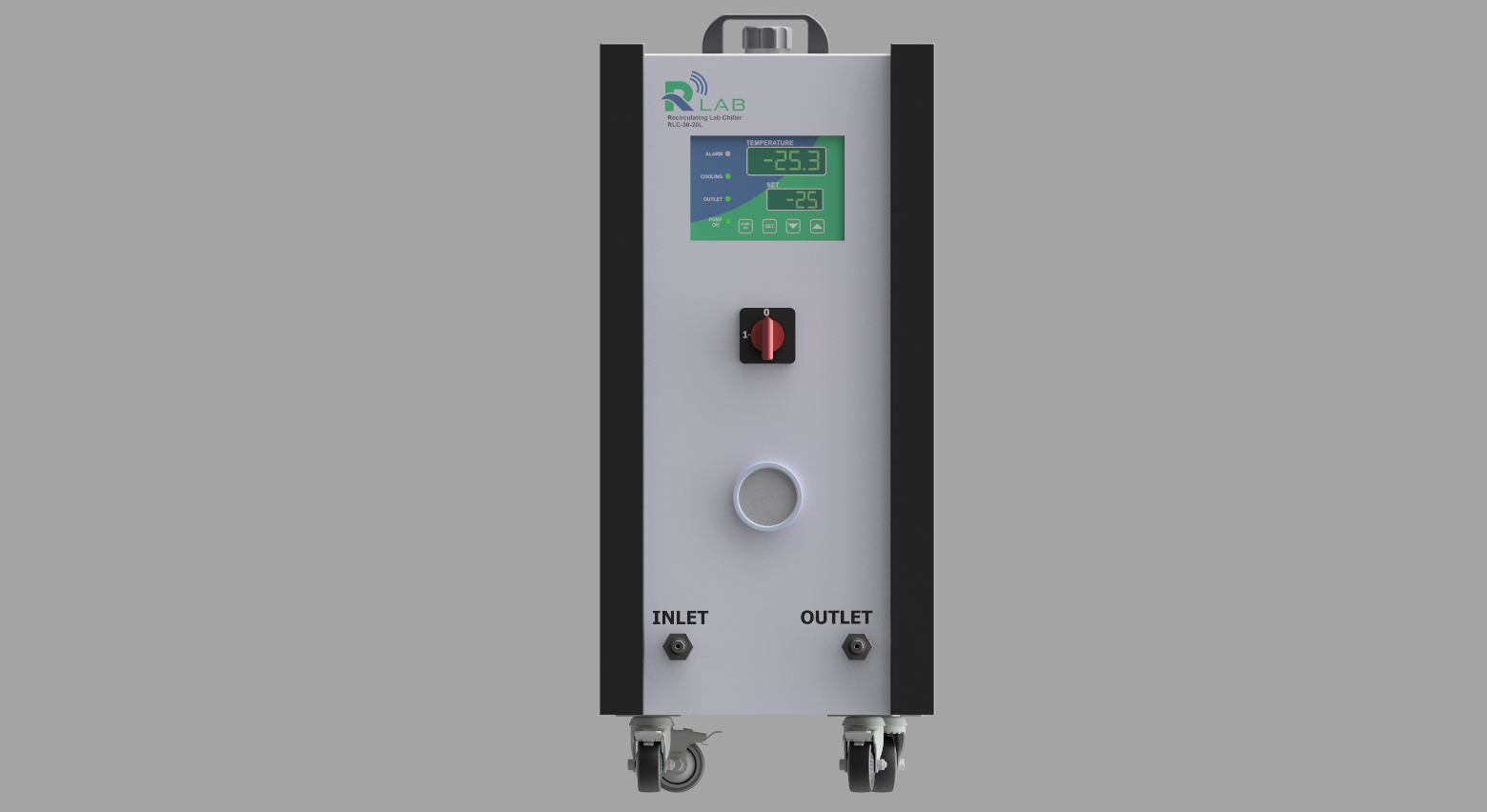

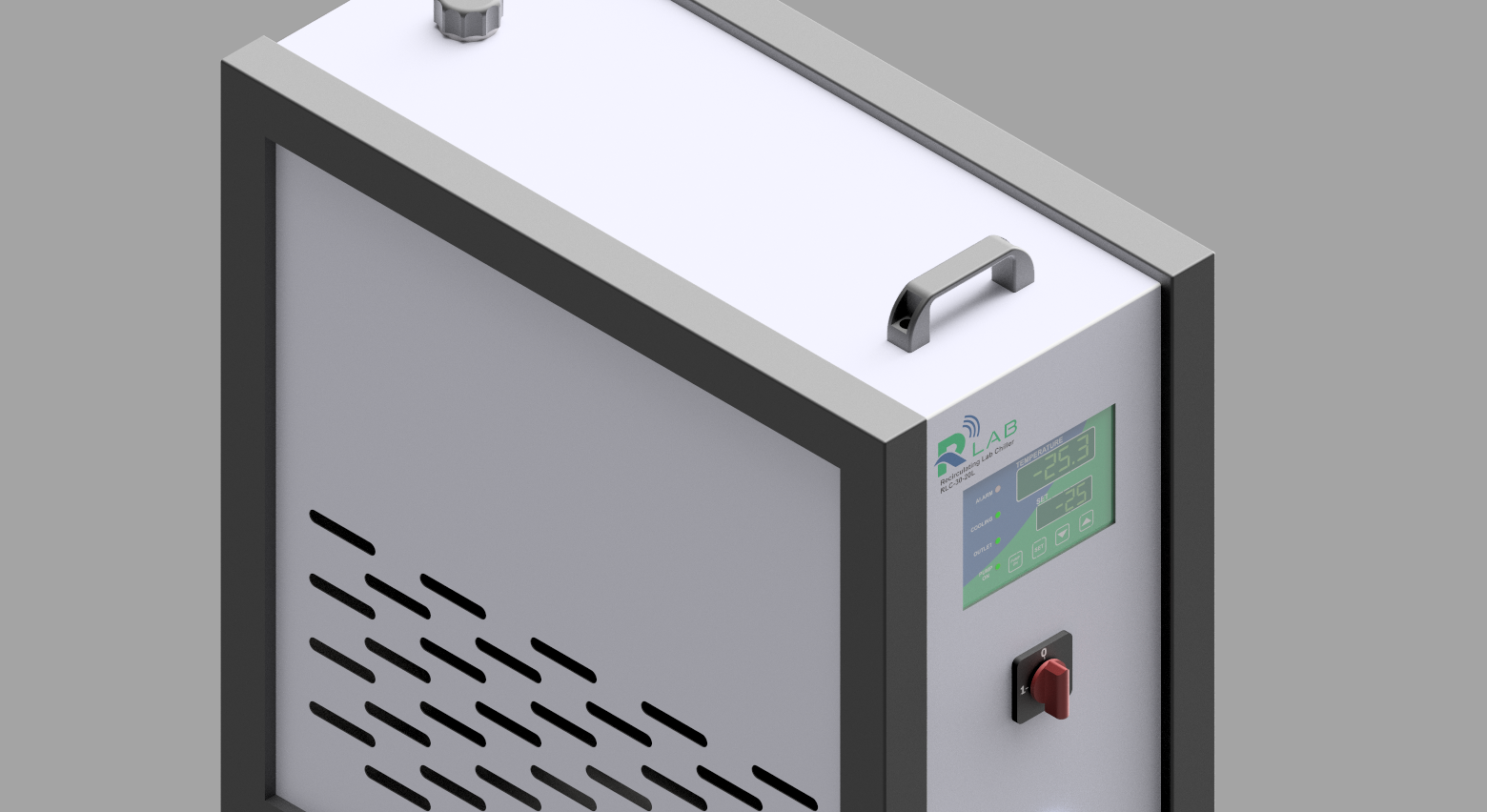

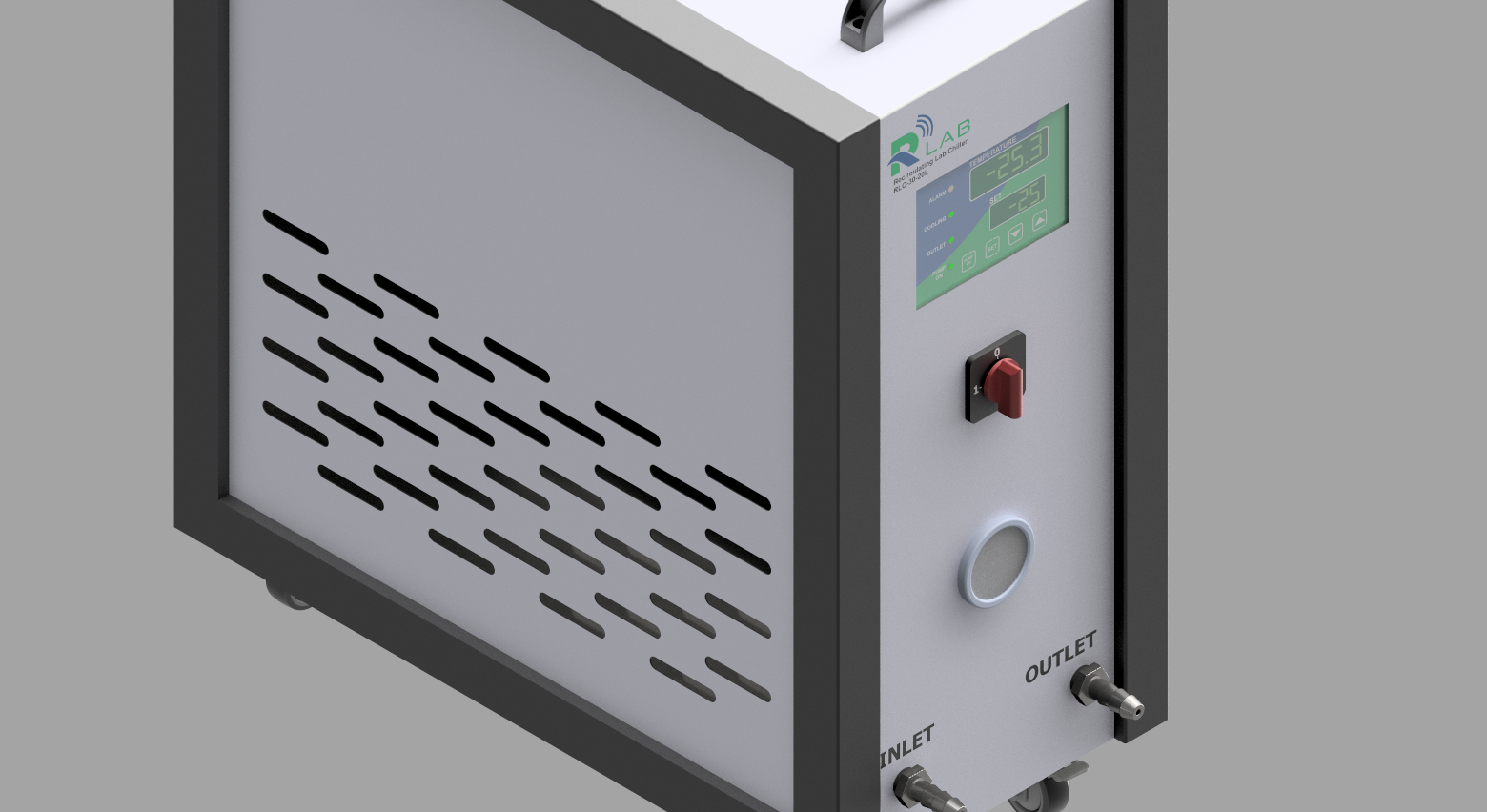

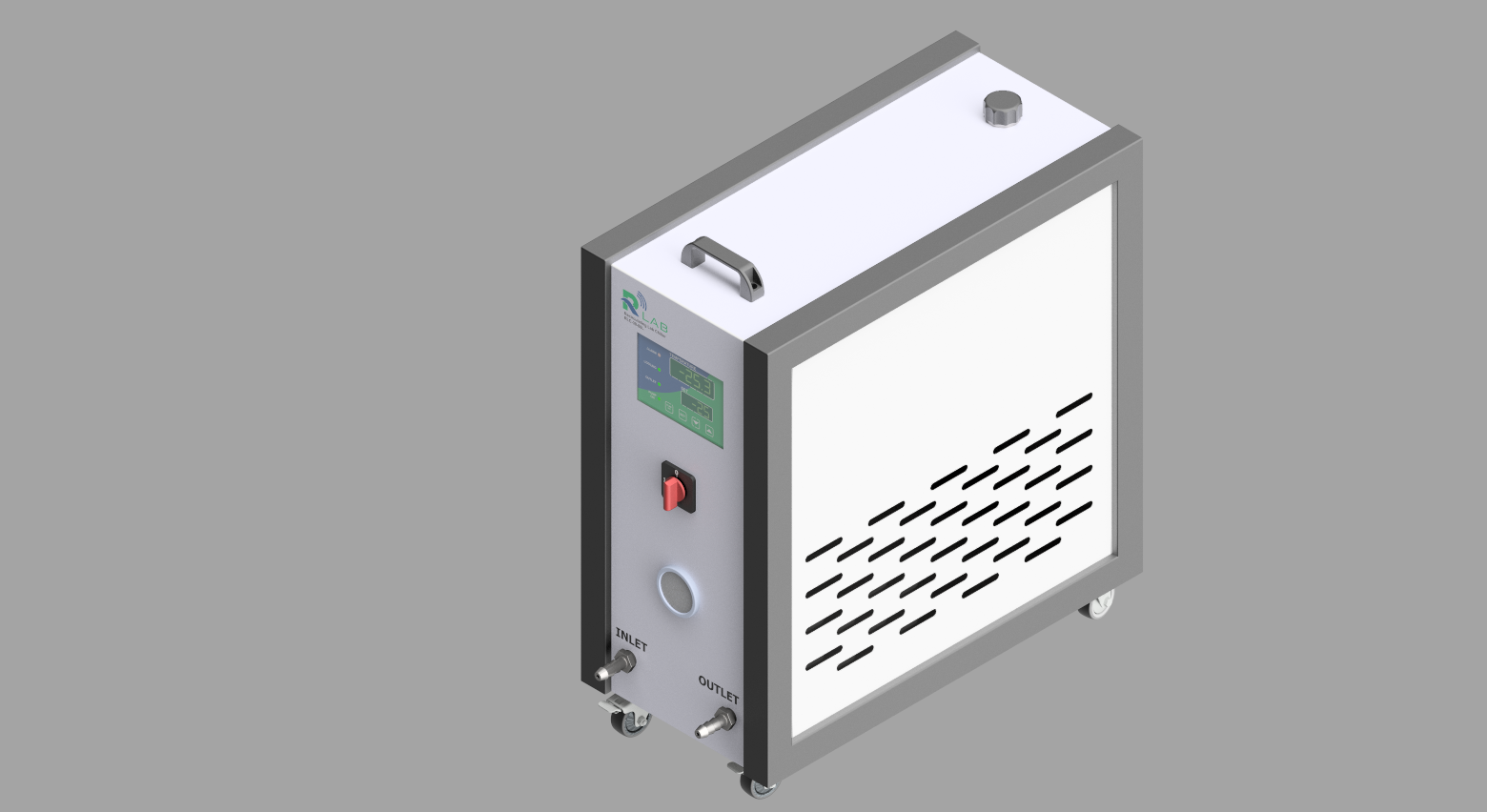

Recirculating Lab Chiller

Internal Volume

  • RLC-05L 05 litre
  • RLC-10L 10 litre
  • RLC-20L 20 litre
  • RLC-35L 35 litre

    • Description

    Chillers help to reduce water consumption and conserve the environment whilst lowering operating costs.
    The main purpose of a chiller is to remove heat from one area and pass it to sources like ambient air or water.
    Designed with a focus on high performance, small footprint and quiet operation.

    Can provide for our customer customized product and can select the needed:

  • Temperature range ( heating or cooling).
  • Tank capacity.
  • Heating and cooling power.

    • PRODUCT INFO

    Laboratory Chiller Features

  • PID controller with Auto-tuning provides accurate temperature regulation.
  • Large and clear display.
  • Temperature sensor PT100 class A.
  • Stainless steel tank with easy fill port.
  • Adjustable: Temperature/Liquid Flow/Pressure.
  • Over range protection.
  • External temperature probe.
  • Low level water detection.
    • Storage Tank Capacity (L) 5 litre
    Cooling Feature
    Temperature Range (℃) ﹣20℃～20℃
    Temperature Stability (℃) ±2℃
    Cooling capacity（@20℃/W） 580
    Cooling capacity（@10℃/W） 530
    Cooling capacity（@0℃/W 470
    Cooling capacity（@-10℃/W） 300
    Cooling capacity（@-20℃/W） 100
    Refrigerant R404A
    Application Feature
    Whole unit power（W） 330
    Power Requirement AC 220V/50Hz/50Hz
    Other
    Pump type DC Magnetic Pump
    Net Weight（Kg） 40
    Liquid Capacity（L） 5
    Exterior Dimension（mm） 230*450*500

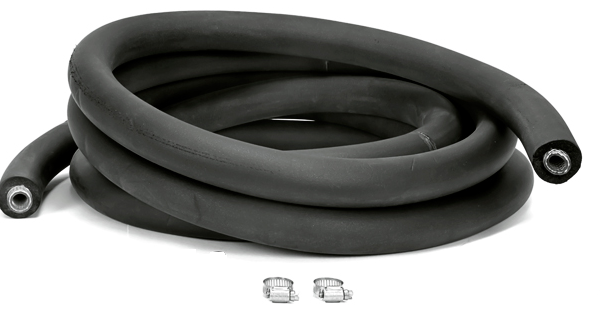

    Flexible tubing with thermal insulation, and hose clamps.

    Customized length order REF: RLC-#1010

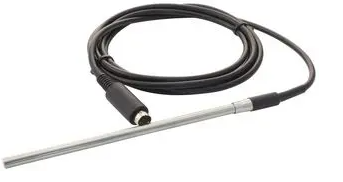

    External immersion probe order REF: RLC-#1011
