Laboratory Water bath

Available Volume

  • WB-11 (11 Litre)
  • WB-17 (17 Litre)
  • WB-34 (34 Litre)

    • PRODUCT INFO

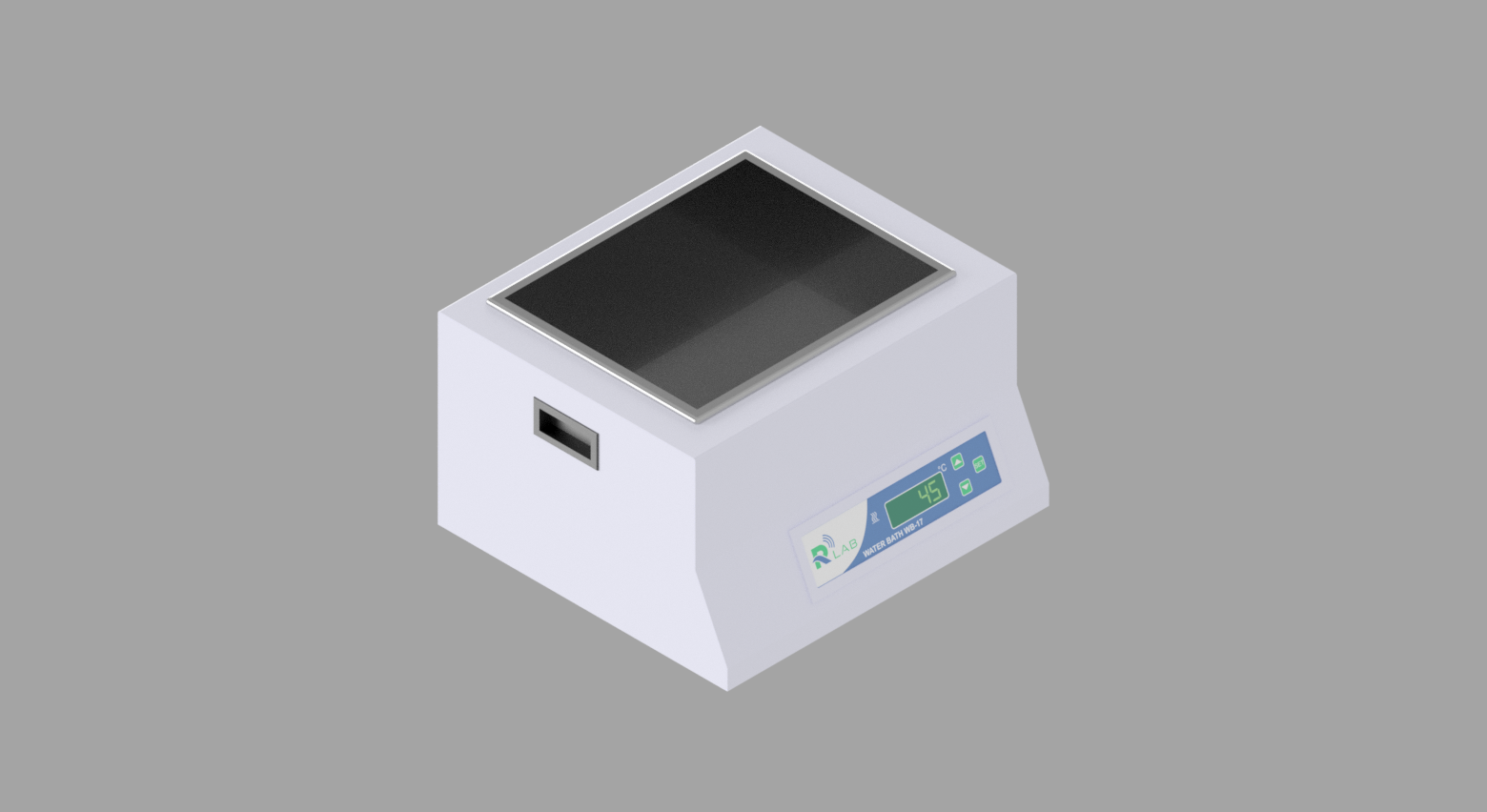

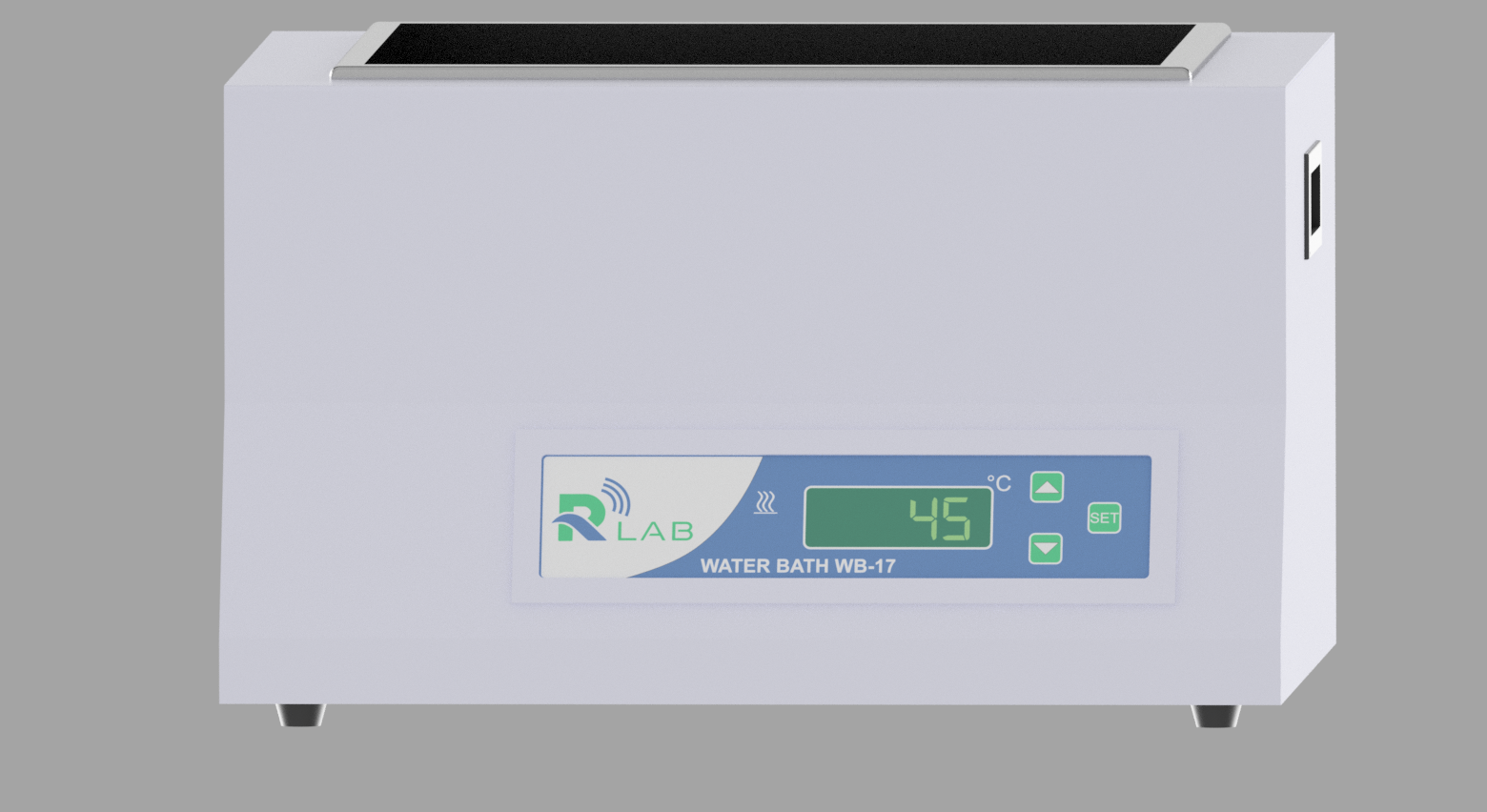

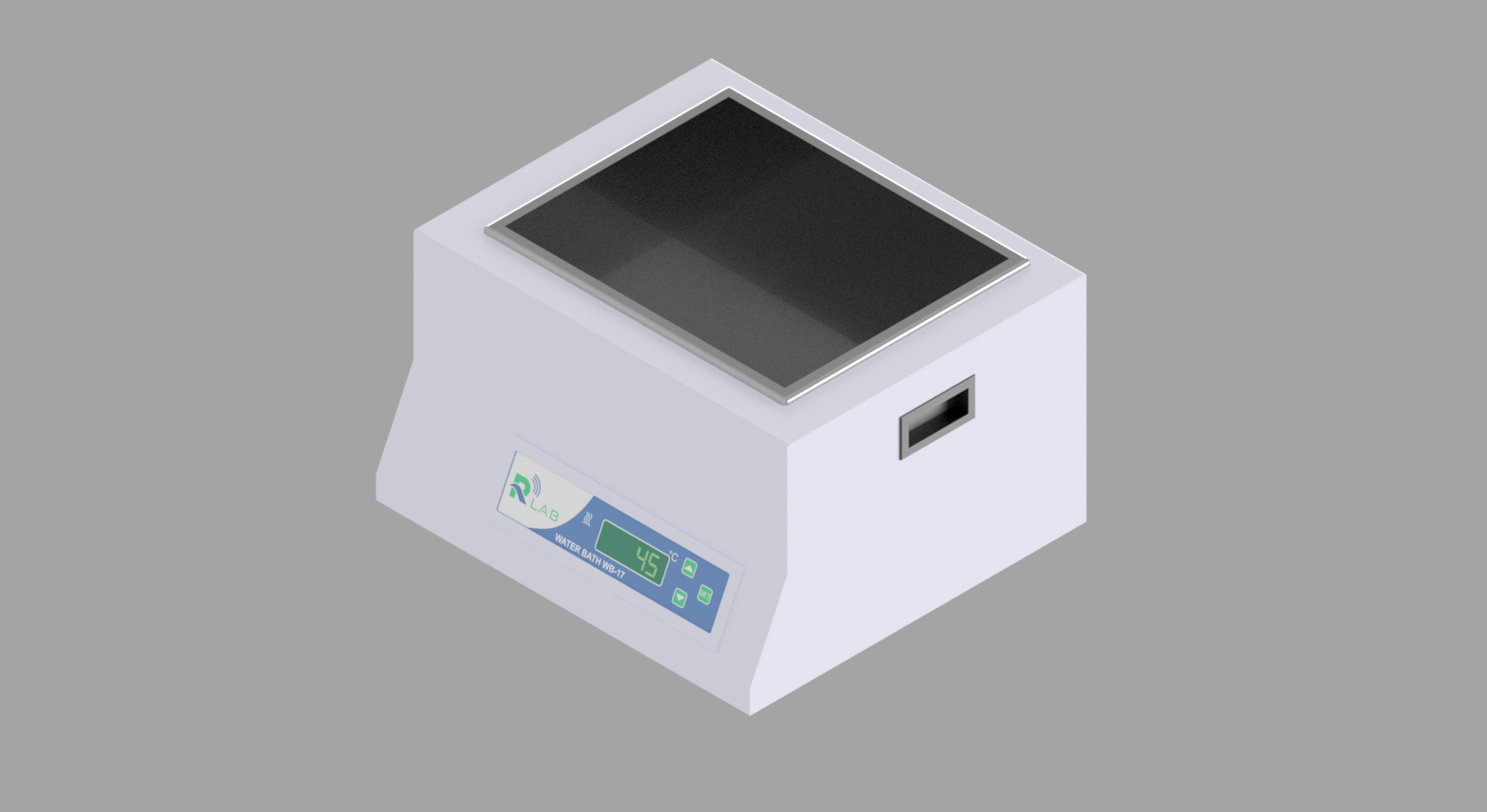

    Laboratory Water bath

  • PID controller with Auto-tuning provides accurate temperature regulation.
  • Temperature range (Ambient T + 5°C - 70°C) without lid.
  • Temperature range (Ambient T + 5°C - 100°C) with lid.
  • Temperature uniformity: ±0.2°C @ 37.0°C.
  • Temperature Stability: ±1.0°C.
  • Temperature Sensor PT100 class A.
  • Thermal isolation Rock-wool 30mm high density.
  • Bath made from Stainless Steel.
  • Case mild steel with anti-corrosion treatment and epoxy paint.
  • Over temperature protection.
    • Reservoir Capacity (L) 11
    Dimension
    Bath Dimensions (L x W x D mm) 170 x 320 x 200
    Overall Dimensions (L x W x D mm) 270 x 400 x 230
    Application Feature
    Power（W） 500
    Power Requirement AC 220V/50Hz/60Hz
    Weight (Kg) 10.8

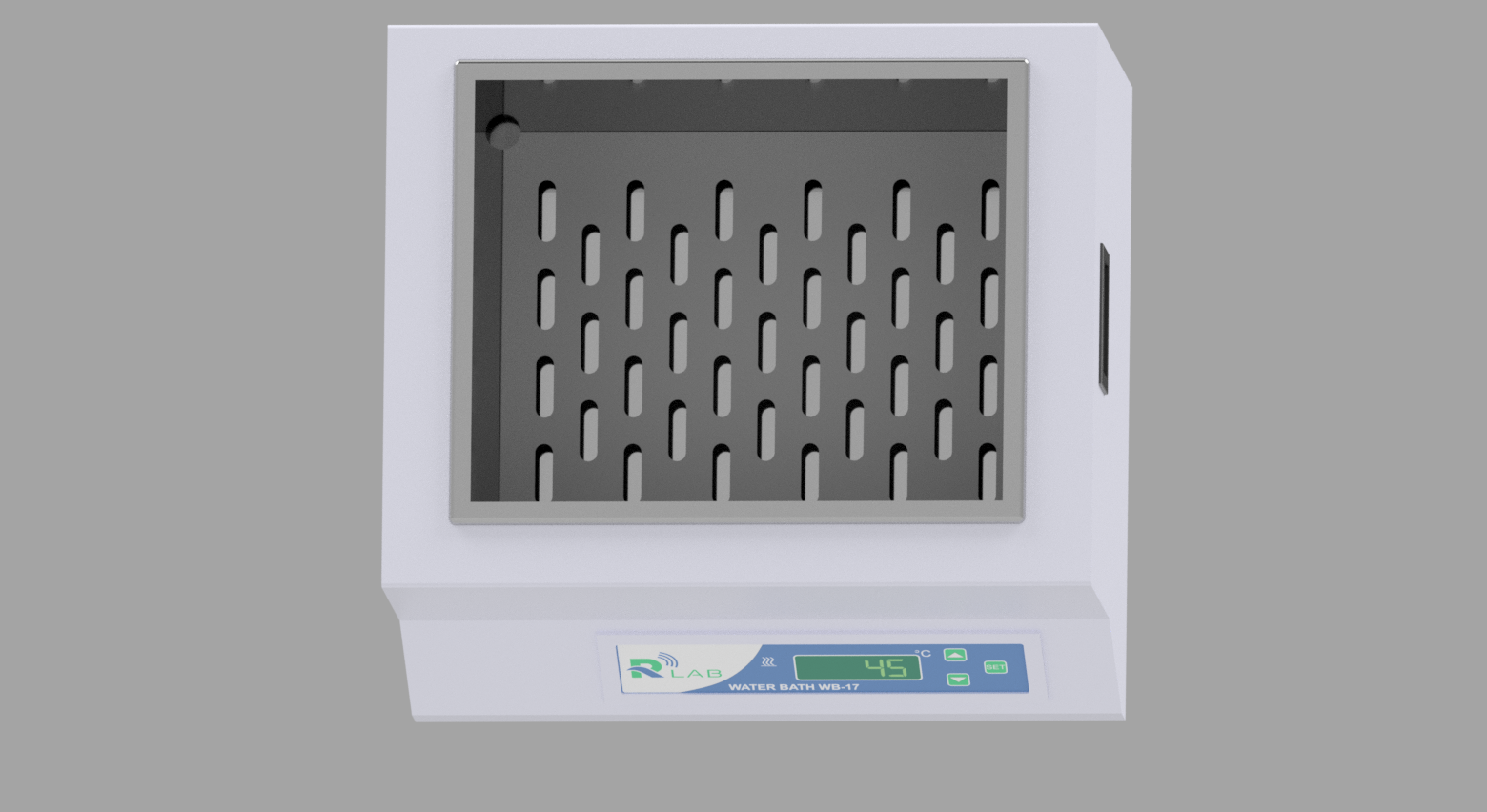

    Hole platform order REF: LS-#2001

    Stainless steel lid with plastic handle REF: LS-#2002

    Thermometer clamp order REF: LS-#2004
